JupyterBook Demonstration#

This document demonstrates some of the features provided by the documentation. It can serve as a starting point for your own documentation.

This documentation is formatted using an extension to Markdown called MyST which allows full interoperability with Sphinx, the system used to build the documentation. Here we demonstrate some features. For more details, please see:

Math#

You can use LaTeX math with [MathJaX][].

Example#

Here we implement a simple example of a pendulum of mass \(m\) hanging down distance \(r\) from a pivot point in a gravitational field \(g>0\) with coordinate \(\theta\) so that the mass is at \((x, z) = (r\sin\theta, -r\cos\theta)\) and \(\theta=0\) is the downward equilibrium position:

\[\begin{gather*} L(\theta, \dot{\theta}, t) = \frac{m}{2}r^2\dot{\theta}^2 + mgr\cos\theta\\ p_{\theta} = \pdiff{L}{\dot{\theta}} = mr^2 \dot{\theta}, \qquad \dot{\theta}(\theta, p_{\theta}, t) = \frac{p_{\theta}}{mr^2},\\ H(\theta, p_{\theta}) = p_{\theta}\dot{\theta} - L = \frac{p_{\theta}^2}{2mr^2} - mgr\cos\theta,\\ \vect{y} = \begin{pmatrix} \theta\\ p_{\theta} \end{pmatrix},\qquad \dot{\vect{y}} = \begin{pmatrix} 0 & 1\\ -1 & 0 \end{pmatrix} \cdot \begin{pmatrix} \pdiff{H}{\theta}\\ \pdiff{H}{p_{\theta}} \end{pmatrix} = \begin{pmatrix} p_{\theta}/mr^2\\ -mgr\sin\theta \end{pmatrix}. \end{gather*}\]

Note

On [CoCalc][], only a subset of the math will render in the live Markdown editor. This uses KaTeX, which is much faster than [MathJaX][], but more limited. The final documentation will use [MathJaX][], and loads the macros defined in Docs/_static/math_defs.tex.

SI Units#

In LaTeX, I like to use the siunitx package. This is not currently supported in MathJax (they could not get funding), but can be mocked up with some defines. The idea is that we use the macros for HTML, but substitute the appropriate \usepackage{siunitx} in the LaTeX files. (This second step is currently not implemented)

Jupyter Notebooks#

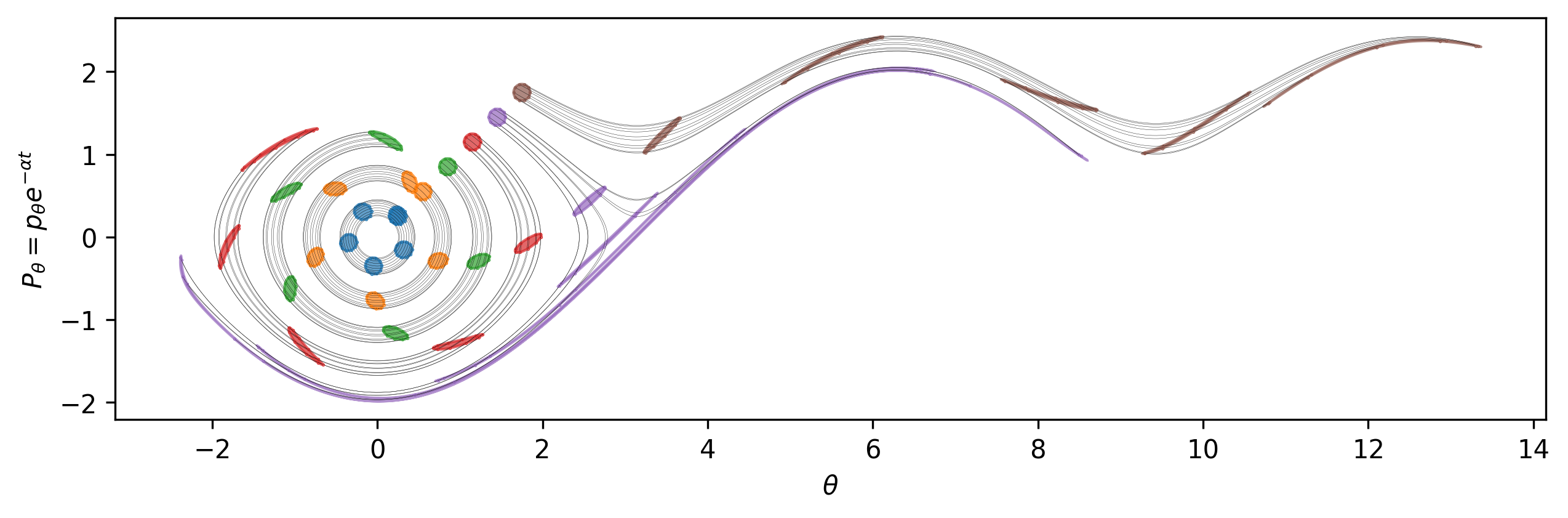

This document is actually a Jupyter notebook, synchronized with Jupytext. The top of the document contains information about the kernel that should be used etc. These are parsed using MyST-NB and the output of cells will be displayed. For example, here is a plot demonstrating Liouville’s Theorem.

Hide code cell source


plt.rcParams['figure.dpi'] = 300
from scipy.integrate import solve_ivp

alpha = 0.0
m = r = g = 1.0
w = g/r
T = 2*np.pi / w   # Period of small oscillations.


def f(t, y):
    # We will simultaneously evolve N points.
    N = len(y)//2
    theta, p_theta = np.reshape(y, (2, N))
    dy = np.array([p_theta/m/r**2*np.exp(-alpha*t),
                   -m*g*r*np.sin(theta)*np.exp(alpha*t)])
    return dy.ravel()


# Start with a circle of points in phase space centered here
def plot_set(y, dy=0.1, T=T, phase_space=True, N=10, Nt=5, c='C0',
             Ncirc=1000, max_step=0.01, _alpha=0.7,
             fig=None, ax=None):
    """Plot the phase flow of a circle centered about y0.

    Arguments
    ---------
    y : (theta0, ptheta_0)
        Center of initial circle.
    dy : float
        Radius of initial circle.
    T : float
        Time to evolve to.
    phase_space : bool
        If `True`, plot in phase space $(q, p)$, otherwise plot in
        the "physical" phase space $(q, P)$ where $P = pe^{-\alpha t}$.
    N : int
        Number of points to show on circle and along path.
    Nt : int
        Number of images along trajectory to show.
    c : color
        Color.
    alpha : float
        Transparency of regions.
    max_step : float
        Maximum spacing for times dt.
    Ncirc : int
        Minimum number of points in circle.
    """
    global alpha
    skip = int(np.ceil(Ncirc // N))
    N_ = N * skip
    th = np.linspace(0, 2*np.pi, N_ + 1)[:-1]
    z = dy * np.exp(1j*th) + np.asarray(y).view(dtype=complex)
    y0 = np.ravel([z.real, z.imag])

    skip_t = int(np.ceil(T / max_step / Nt))
    Nt_ = Nt * skip_t + 1
    t_eval = np.linspace(0, T, Nt_)
    res = solve_ivp(f, t_span=(0, T), y0=y0, t_eval=t_eval)
    assert Nt_ == len(res.t)
    thetas, p_thetas = res.y.reshape(2, N_, Nt_)
    ylabel = r"$p_{\theta}$"
    if phase_space:
        ylabel = r"$P_{\theta}=p_{\theta}e^{-\alpha t}$"
        p_thetas *= np.exp(-alpha * res.t)

    if ax is None:
        fig, ax = plt.subplots()

    ax.plot(thetas[::skip].T, p_thetas[::skip].T, "-k", lw=0.1)
    for n in range(Nt+1):
        tind = n*skip_t
        ax.plot(thetas[::skip, tind], p_thetas[::skip, tind], '.', ms=0.5, c=c)
        ax.fill(thetas[:, tind], p_thetas[:, tind], c=c, alpha=_alpha)
    ax.set(xlabel=r"$\theta$", ylabel=ylabel, aspect=1)
    return fig, ax


fig, ax = plt.subplots(figsize=(10,5))


for n, y in enumerate(np.linspace(0.25, 1.75, 6)):
    plot_set(y=(y, y), c=f"C{n}", ax=ax)
_images/d6479a8f28b490cb3149a27f70c2d19b7c2a2ecba42bed5a74850f742694d526.png

Details

We start a code-block with:

```{code-cell}
:tags: [hide-input, full-width]
...
```

This indicates that it is a code cell, to be run with python 3, and has some tags to make the cell and output full width, but hiding the code. (There is a link to click to show the code.)

If you need more control, you can glue the output to a variable, then load it as a proper figure, insert it in a table, etc.

Manim#

We provide experimental support for Manim Community – the community edition of the animation software used by the 3Blue1Brown project. Here we demonstrate an animation of the Jacobi elliptic functions.

Hide code cell content


import manim.utils.ipython_magic

---------------------------------------------------------------------------
ModuleNotFoundError                       Traceback (most recent call last)
Cell In[3], line 1
----> 1 import manim.utils.ipython_magic

ModuleNotFoundError: No module named 'manim'

Hide code cell source


%%manim -v WARNING --progress_bar None -qm JacobiEllipse
from scipy.special import ellipj, ellipkinc
from manim import *

config.media_width = "100%"
config.media_embed = True

my_tex_template = TexTemplate()
with open("_static/math_defs.tex") as f:
    my_tex_template.add_to_preamble(f.read())

def get_scd(phi, k):
    m = k**2
    u = ellipkinc(phi, m)
    s, c, d, phi_ = ellipj(u, m)
    return s, c, d

def get_xyr(phi, k):
    s, c, d = get_scd(phi, k)
    r = 1/d
    x, y = r*c, r*s
    return x, y, r

class JacobiEllipse(Scene):
    def construct(self):
        config["tex_template"] = my_tex_template
        config["media_width"] = "100%"
        class colors:
            ellipse = YELLOW
            x = BLUE
            y = GREEN
            r = RED

        phi = ValueTracker(0.01)
        k = 0.8
        axes = Axes(x_range=[0, 2*np.pi, 1],
                    y_range=[-2, 2, 1],
                    x_length=6,
                    y_length=4,
                    axis_config=dict(include_tip=False),
                    x_axis_config=dict(numbers_to_exclude=[0]),
                   ).add_coordinates()


        plane = PolarPlane(radius_max=2).add_coordinates()

        x = lambda phi: get_xyr(phi, k)[0]
        y = lambda phi: get_xyr(phi, k)[1]
        r = lambda phi: get_xyr(phi, k)[2]

        g_ellipse = plane.plot_polar_graph(r, [0, 2*np.pi], color=colors.ellipse)

        points_colors = [(x, colors.x), (y, colors.y), (r, colors.r)]
        x_graph, y_graph, r_graph = [axes.plot(_x, color=_c) for _x, _c in points_colors]
        graphs = VGroup(x_graph, y_graph, r_graph)

        dot = always_redraw(lambda:
            Dot(plane.polar_to_point(r(phi.get_value()), phi.get_value()),
                fill_color=colors.ellipse,
                fill_opacity=0.8))

        @always_redraw
        def lines():
            c2p = plane.coords_to_point
            phi_ = phi.get_value()
            x_, y_ = x(phi_), y(phi_)
            return VGroup(
                Line(c2p(0, 0), c2p(x_, 0), color=colors.x),
                Line(c2p(0, y_), c2p(x_, y_), color=colors.x),
                Line(c2p(0, 0), c2p(0, y_), color=colors.y),
                Line(c2p(x_, 0), c2p(x_, y_), color=colors.y),
                Line(axes.c2p(phi_, y_), c2p(x_, y_), color=colors.y),
                Line(c2p(0, 0), c2p(x_, y_), color=colors.r),
            ).set_opacity(0.8)

        dots = always_redraw(lambda:
            VGroup(*(Dot(axes.c2p(phi.get_value(), _x(phi.get_value())), fill_color=_c, fill_opacity=1)
                     for _x, _c in points_colors)))

        a_group = VGroup(axes, dots, graphs)
        p_group = VGroup(plane, g_ellipse, dot, lines)
        a_group.shift(RIGHT*2)
        p_group.shift(LEFT*4)

        labels = VGroup(
            axes.get_graph_label(
                x_graph, label=r"x=\cn(u, k)", color=colors.x,
                x_val=2.5, direction=DOWN).shift(0.2*LEFT),
            axes.get_graph_label(
                y_graph, label=r"y=\sn(u, k)", color=colors.y,
                x_val=4.5, direction=DR),
            axes.get_graph_label(
                r_graph, label=r"r=1/\dn(u, k)", color=colors.r,
                x_val=2, direction=UR),
        )
        #labels.next_to(a_group, RIGHT)
        self.add(p_group, a_group, labels)
        self.play(phi.animate.set_value(2*np.pi), run_time=5, rate_func=linear)

UsageError: Cell magic `%%manim` not found.

Warning

We need a Manim >= 0.15.0 to get this to work, resolving issue 2441 by embeding the video in the output.
